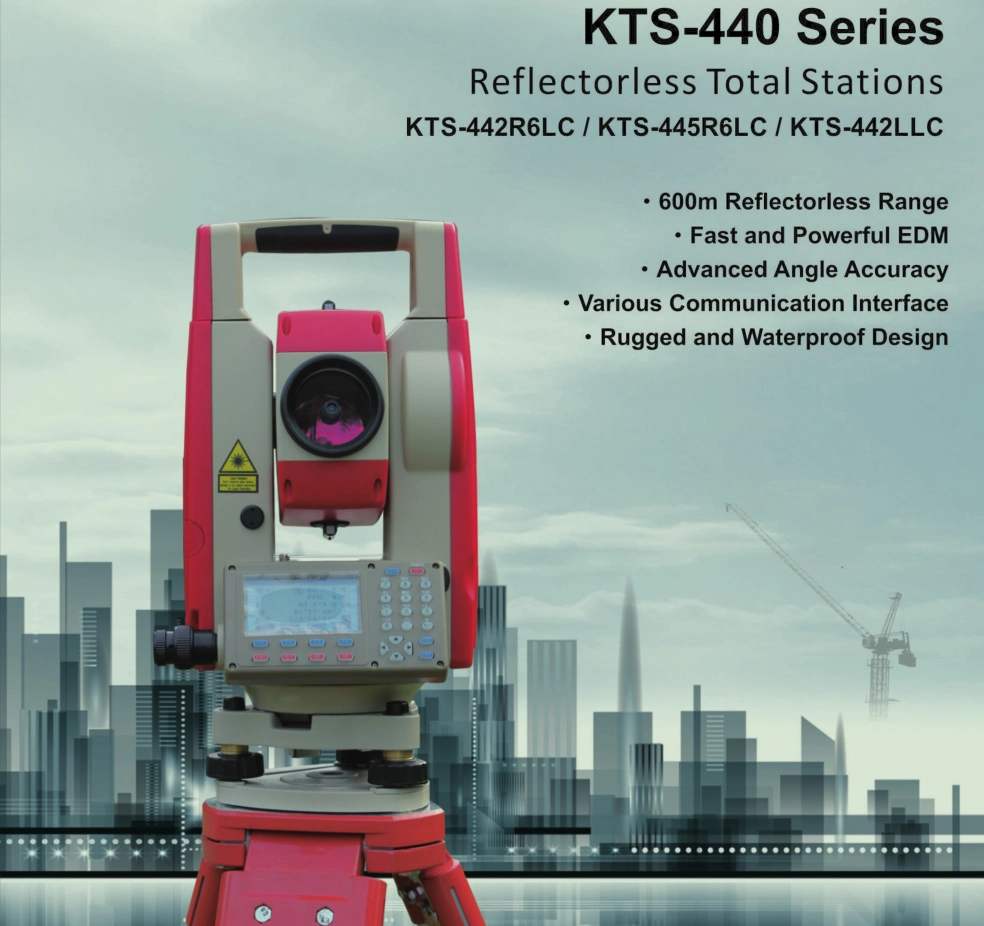

Ultra-Powerful, Advanced EDM
600m Non-prism range
5000m prism range
0.1-0.3 second measurement time. Coaxial red laser pointer
Improved performance under foggycondition
Various Communication Interface
Up to 2GB SD card storageMiniUsB port
RS-232 Serial port
Advanced Angle Encoder System
2 angle accuracy availableImproved 4-ccd sensor designSelf-calibration
Proven high accuracy technologyit
Rugged, Waterproof Design
Waterproof/ dust proof P56 protectionlevel
Atmosphere Temperature sensor· Stable angle accuracy
Alphanumeric keyboard with backlight
|Accuracy Prism mode||±(2mm+2ppm ×D)|
|Accuracy Non-prism mode||±(3mm+2ppm ×D)|
|Measuring Time||Fine: 0.3s,(optimal); tracking: 0.1s|
|Meteorologic Correction||Automatic correction by inputing parameter|
|Prism Constant||Automatic correction by inputing parameter|
|Diameter of the Raster Disk||79mm|
|Min, Reading||1"/5" optional|
|Detection Method||Horizontal: dual Vertical: Dual|
|Lense diameter of objective||Telescope: 45mm(1.77 in) distance meter: 50mm|
|Field of View||1°30'|
|No.of unit||2 sides, 6 lines|
|Method||Dual axis Liquid-electric|
|OPTICAL PLUMMET (OPTIONAL: INTERNAL LASER PLUMMET)|
|Field of View||5°|
|DATA STORAGE & INTERFACE|
|Internal Memory||2M/ 24000 points|
|External Memory||SD card (up to 32G)|
|Communication Port||mini USB, RS232|
|Working Time||16h distance mode / 24 hours Angle mode|
|Water & Dust Proof||IP56|
|Battery Type||Rechargeable Ni-H Battery 7.4V, 2700mAh, 6V DC|

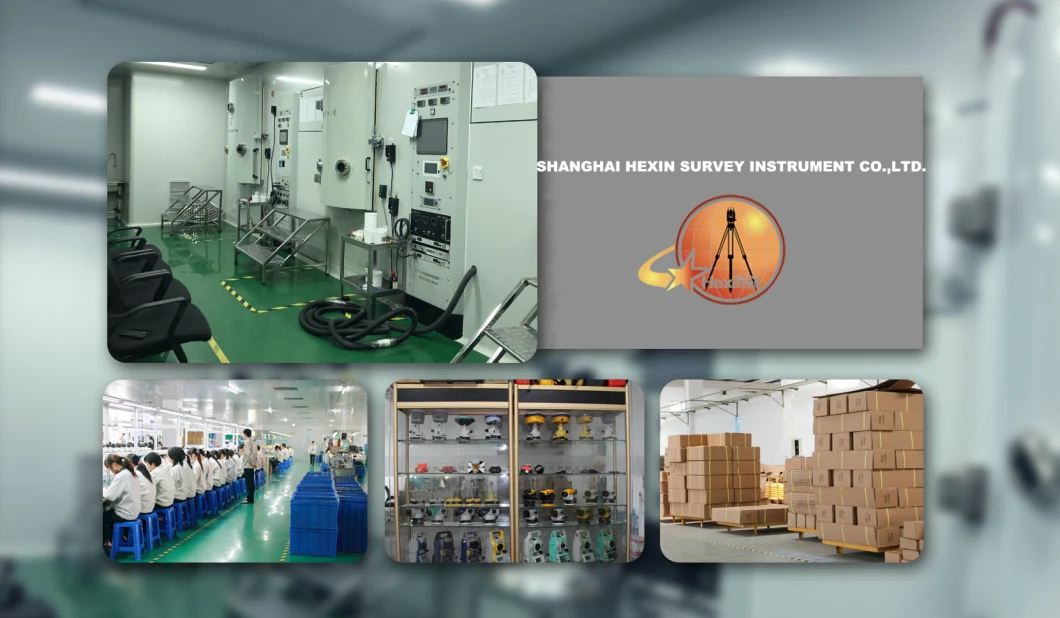

Shanghai Hexin Survey Instrument Co., LTD has 8 years' experience in geodetic surveying and cadastration surveying, we are a professional and leading enterprise in the surveying industry in MainlandChina. We specialize in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying accessory, GPS receiver, mapping software, etc.The marketing model advocated by us is not a simple sense of "selling products", instead, pre-sales service, services during operation and after-sales service are integrated in entire operating activities. It makes the customers feel that they purchased not only a commodity, but also a professional service.We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
Q:How to turn off voice broadcast of receiver?
A: a. Enter the WEBUI, find the voice switch in the settings page and turn it off.
b. Controller Software→Device→Device Setting, turn off the "enable voice", and click"ok"
Q: Can the base station and rover station be interchangeable?
A: The difference between the rover station and the base station is that the accessories are different, the function and hardware configuration are the same.You can use the controller to choose the working mode of the device and set it as the base station or rover station.
Q: What is CORS?
A: CORS is called a continuous operating reference station system. It can be understood as a bas e station that is erected at a fixed known point and works continuously for 24 hours and sends its own data to a specific serverthrough the network. The use of CORS operation eliminates the need for a base station, and CORS is equivalent to a base station in a normal network operation.
