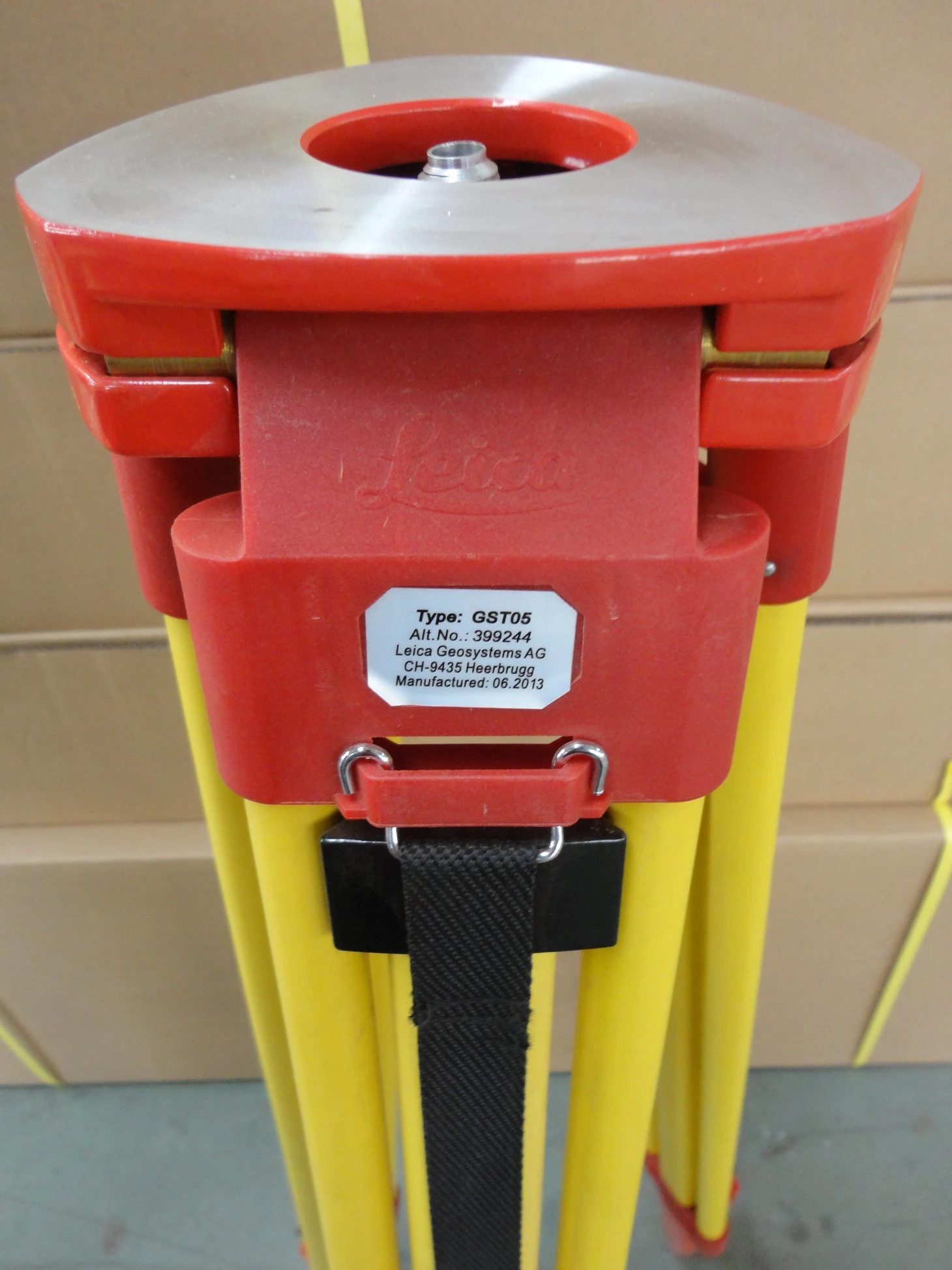

Leica Wooden Tripod for Total Station Surveying (GST05)

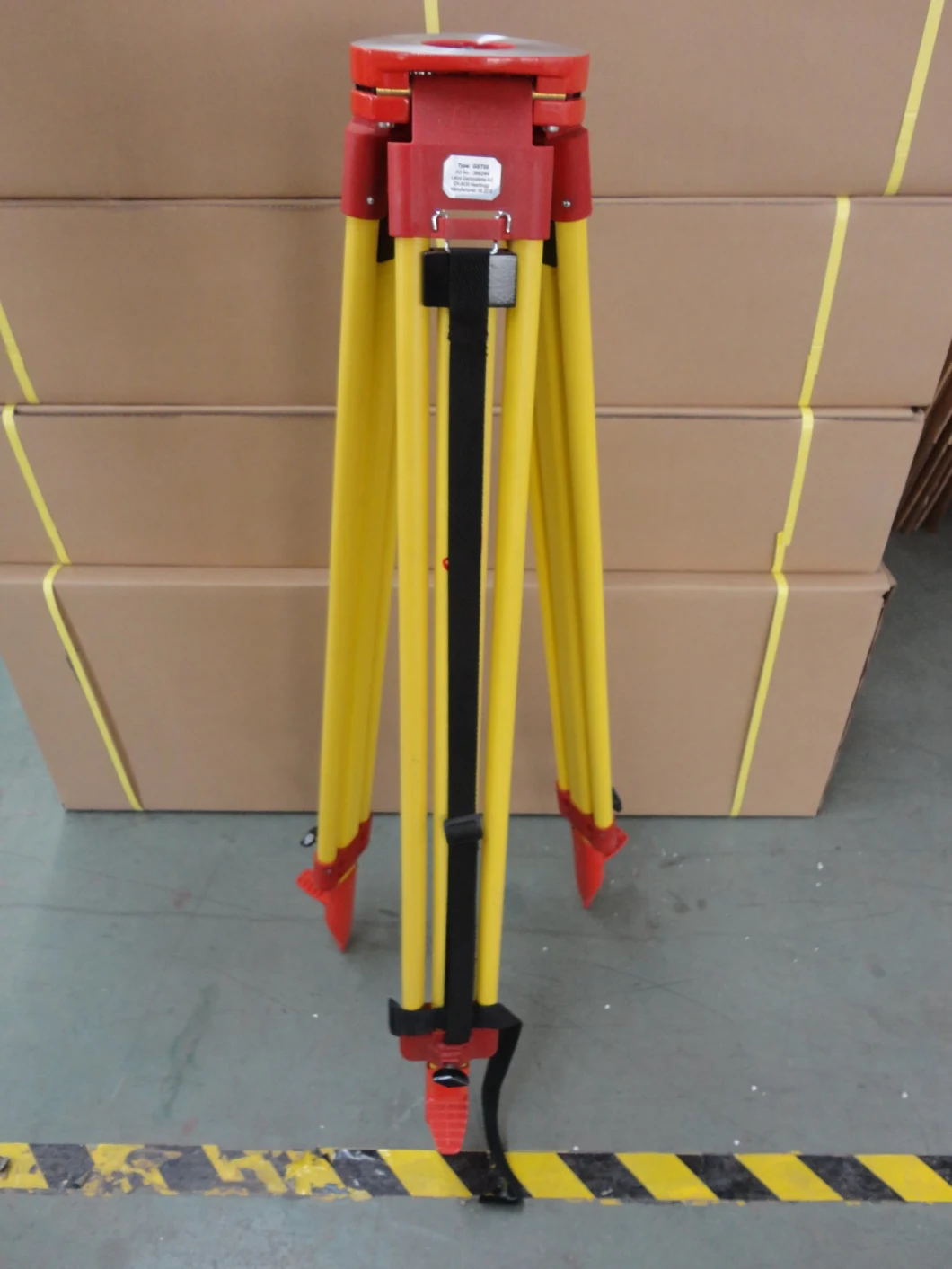

1 This heavy duty wooden tripod is with carrying strap, side clamp screw and plumb bob.
2 It is proven long-life, twist-proof and good vibration characteristics.
3 It is robust well-established tripod for general use. Suitable for levels, lasers, total stations and GPS.
4 The wooden tripod extends 1700mm and retracts 1070mm
5 Head size: 160mm, head bore: 55mm
6 It is made of Brazil or Indonesian wooden.
Product:
1 This heavy duty wooden tripod is with carrying strap, side clamp screw and plumb bob.
2 It is proven long-life, twist-proof and good vibration characteristics.
3 It is robust well-established tripod for general use. Suitable for levels, lasers, total stations and GPS.
4 The wooden tripod extends 1700mm and retracts 1070mm
5 Head size: 160mm, head bore: 55mm
6 It is made of Brazil or Indonesian wooden.
| Wooden Tripods Technical Data | |||||||
| Model | Fully Extended Length | Retracted Length | Clamp Mode | Thread | Head Size | Head Bore | Weight |
| JM-1(Topcon) | 1700 | 1070 | Twist Lock | 5/8" or M16 | 160 | 55 | 7.2kg |
| GST05(Leica) | 1700 | 1070 | Twist Lock | 5/8" or M16 | 160 | 55 | 6.5kg |
| JM-1B(Nedo) | 1700 | 1070 | Twist Lock | 5/8" or M16 | 166 | 68 | 6.5kg |
| PFW1(Sokkia) | 1700 | 1070 | Twist Lock | 5/8" or M16 | 160 | 68 | 6.6kg |
