PRODUCT DESCRIPTION
Stonex R2C is Stonex factory's newest model Total Station. It has the color display which is very convenient to use under the sun light. It has Keyboard back light which can be very convenient for engineers to use at night time. R2C use the dual compensator which can guarantee the measure data of the survey result. And it has the Guide light(green and red shaking light) which is quite useful to do the layout job.
R2C has bluetooth, SD card and USB cable data download solution. Very easy to download the data from TS to PC. And our total station has one button measure key which is very use friendly design. It has 800m reflectroless which can satisfy most of the measure requirement.

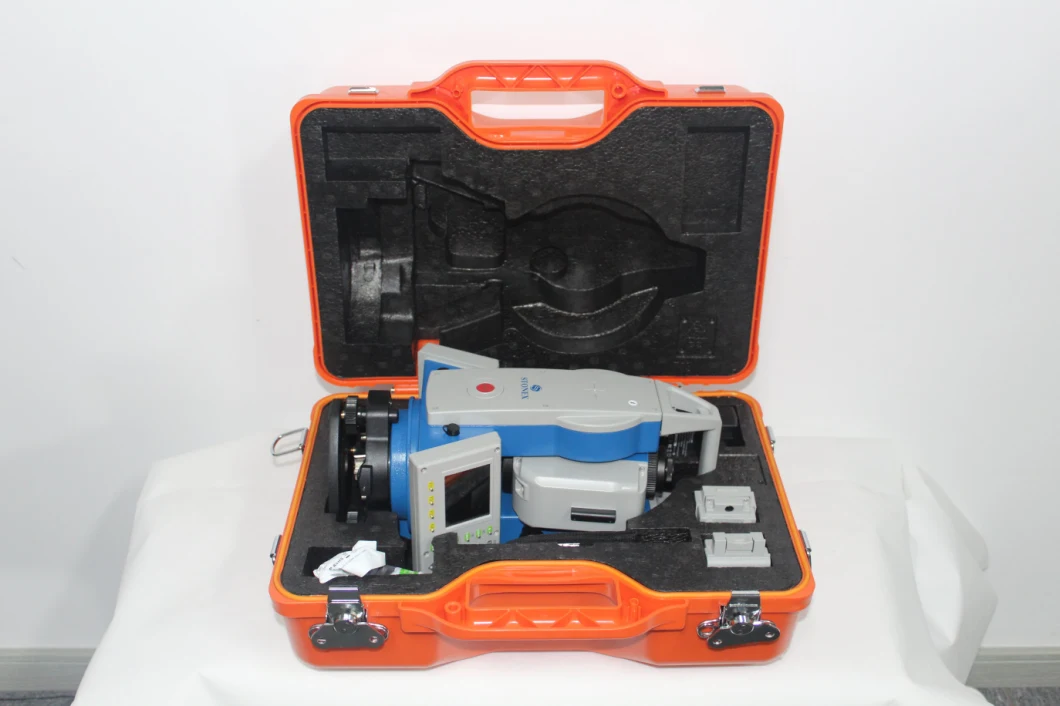

PRODUCT SHOW
PRODUCT SPECIFICATION
| Model | R2C | ||
| Telescope | Mirror tube length | 156mm | |
| imaging | Positive | ||
| Effective diameter of objective lens(EDM) | 45mm | ||
| Magnification | 30X | ||
| field | 1°30′ | ||
| Discrimination (JIS) | 3.5″ | ||
| Shortest range of visibility | 1.0m | ||
| Range finder | Ranging light source | (visible lase)650~690nm | |
| Spot diameter | 12mm/50mm ellipse | ||
| Laser grade | Class3 | ||
| Measuring range(good weather condition) | Non-prism | 600m | |
| Reflector RP60 | 1000m | ||
| Mini prism | 1200m | ||
| Single prism | 5000m | ||
| Precision of distance measurement | Prism | ±(2+2×10-6·D)mm | |
| Reflector,Non-prism | ±(3+2×10-6·D)mm | ||
| Measurement time | 1.0s/0.3s(precision / tracking); initial:2.5s | ||
| Minimum reading of distance measurement | Precision measurement mode:1mm Tracking measurement mode:10mm | ||
| Range of temperature setting | -40ºC~+60ºC | ||
| temperature range | 1ºC(automatic correction) | ||
| Atmospheric correction | 500hPa-1500 hPa | ||
| atmospheric pressure | 1hPa(automatic correction) | ||
| Prism constant correction | -99.9mm ~ +99.9mm | ||
| Long level bubble | Tube type bubble precision | 30″/2mm | |
| Circular bubble precision | 8′/2mm | ||
| Graphical electronic level | 30″/2mm;range:3′;Accurancy:1″ | ||
| Laser counter point device | Light spot size / energy | Adjustable | |
| Laser class | Class2/IEC60825-1 | ||
| wavelength | 635nm | ||
| accuracy | ±0.8mm/1.5m | ||
| Angle measurement | Reading system | Absolute coding system | |
| Minimum reading | 1″/5″ | ||
| Precision | 2″ | ||
| Display unit | 360°/400gon/6400mil | ||
| Midpoint of optical pair(selection) | accuracy | ±0.8mm/1.5m | |
| Imaging | Positive | ||
| Magnification | 3X | ||
| field | 4° | ||
| Compensator | Compensator method | Dual axis compensation | |
| Range of compensation | ±3′ | ||
| Display | type | LCD display on both sides (8 lines and 15 columns of English ) | |
| lighting | LCD backlight | ||
| Screen resolution | 240*128 | ||
| Power Supply | Battery | 4000mAh lithium battery | |
| working voltage | 7.4V | ||
| Working time | >24 hours | ||
| Charger | FDJ6-Li | ||
| Communication and physical parameters | Memory point | Host RAM with 120000 points Hot plugged SD card | |
| Host weight (with battery) | 6KG | ||
| volume | 184X220X360MM(WXDXH) | ||
| temperature range | -20ºC~ +50ºC | ||
| I/O upload / download | Having the functions of uploading and downloading dataRS232C/USB/SD card(Bluetooth customizable) | ||
| Waterproof grade | IP54(IEC60529) | ||
| Note: good weather conditions (no fog, visibility 30Km); | |||
